Product
product
TPV1D2221T
Applicable gasesliquefied petroleum gas, natural gas
Service pressure5KPa
Environmental temperature-20~+60 °C (without icing)
Drive power supplysolenoid valve DC200V (AC220 full wave rectification); Proportional valve 0~250mA (DC superimposed AC constant current source)
Rated power below 25W (at 20 °C)
Insulation levelClass B (130 °C)
External leakage≤ 35mL/hi, intake pressure 15KPa)
Internal leakage≤ 35mL/hi, intake pressure 5KPa)
Setting direction The air inlet is vertically downward, with a inclination angle of within 5 °
Connection terminalsolenoid valve AMP187. Proportional valve AMP187
DescriptionThe voltage of the solenoid valve can be selected as 24V, 110V, or 220V

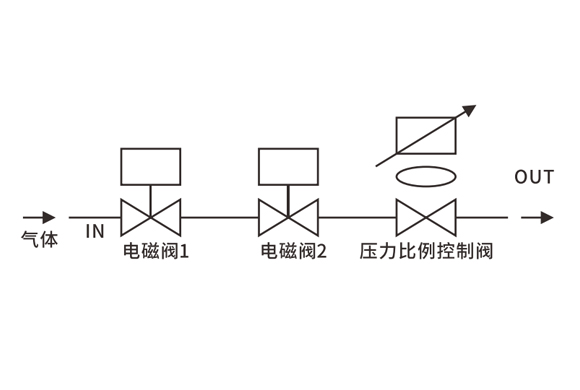

Product Structure(Wiring diagram)

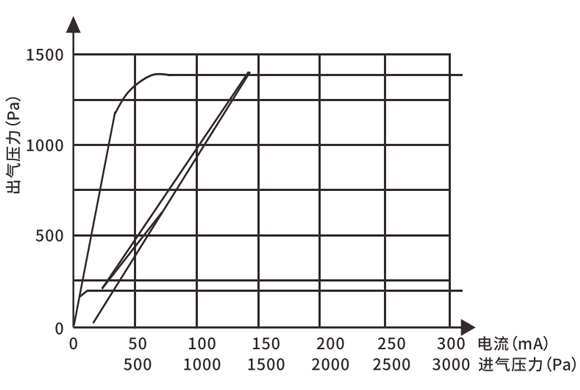

Characteristic Curve
Physical Dimension
