66ZWF-08XX A3
Motor voltage
：
DC45V MAX
Circuit voltage
：
DC12V (can be built-in)
Speed signal
：
4 pulses/revolution
Drive mode
：
PAM or PWM
Maximum air volume
：
100m³/h
Maximum wind pressure
：
700Pa
Maximum current
：
1.5A
Insulation level
：
Class E

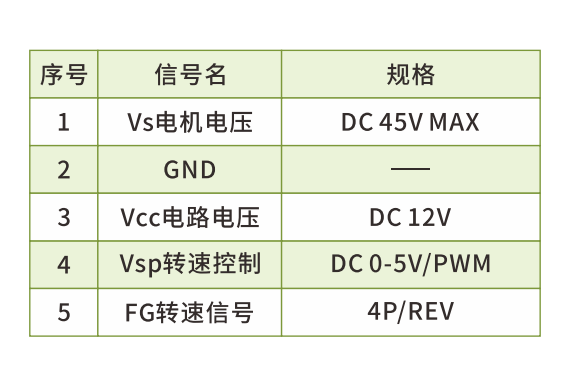

Product Structure(Wiring diagram)

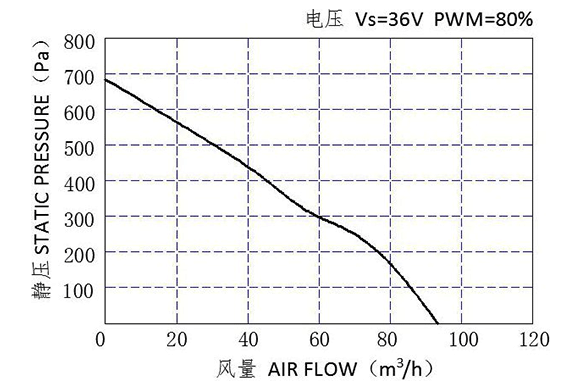

Characteristic Curve

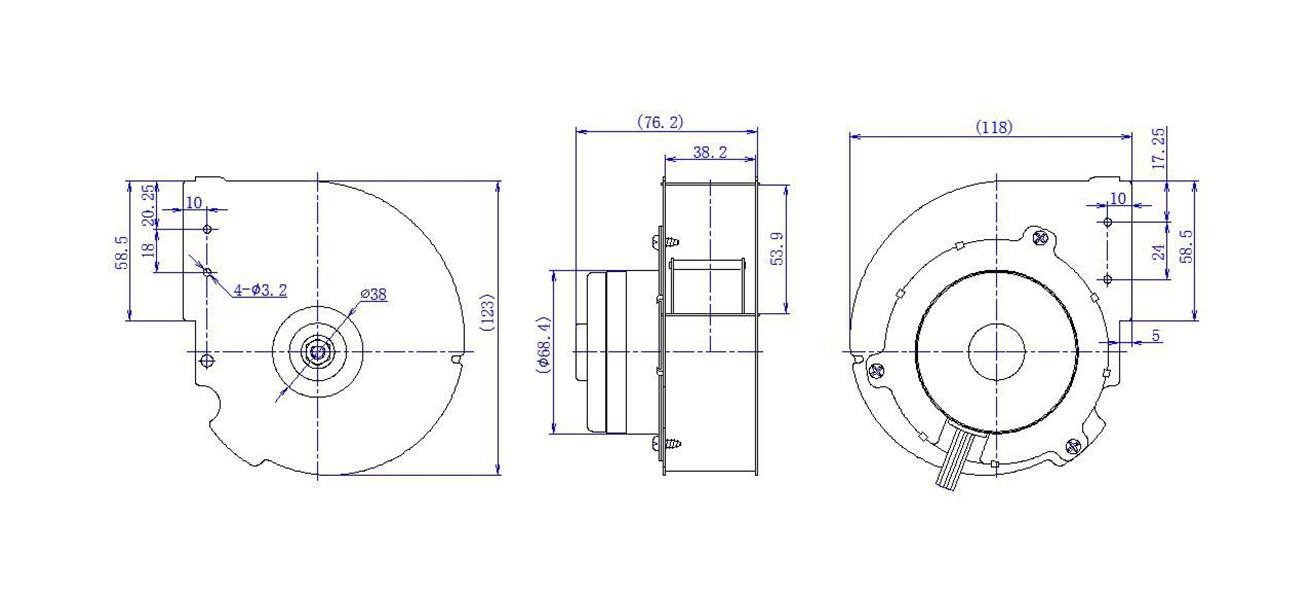

Physical Dimension
