Working voltage rangesolenoid valve AC220-240V; Hall component DC 5-18V
Water pressure used0.02MPa~1.0 MPa
Liquid usedpublic water
Usage timerated continuous or short working time
Insulation levelThe solenoid valve is Class F
1Used for the water inlet end of the dishwasher, it can control the water inlet on/off, detect input flow, and output corresponding pulse signals
2When water flows through this product, the magnetic rotor begins to rotate, and its speed is proportional to the inlet flow rate. The Hall component outputs the corresponding pulse signal and feeds it back to the controller
3Equipped with a check valve, the water flow cannot be reversed to prevent water from siphoning back in the water tank

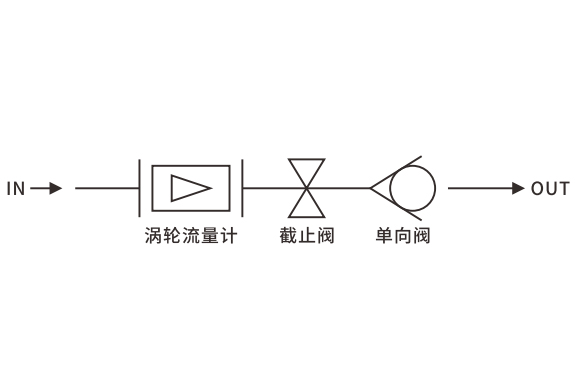

Product Structure(Wiring diagram)

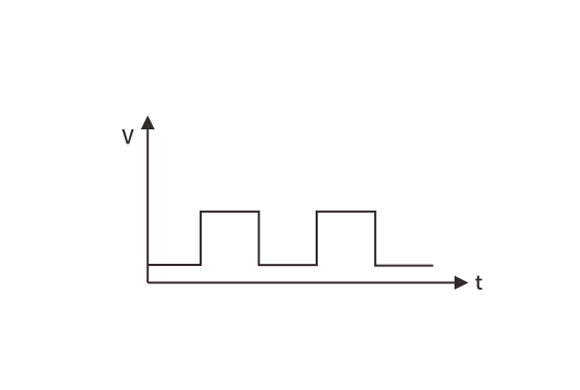

Characteristic Curve
Physical Dimension
