TPV2D2401T
Applicable gasesliquefied petroleum gas, natural gas, artificial gas
Service pressure 6.5KPa
Environmental temperature-20~+60°C (without icing)
Drive power supplysolenoid valve DC24V; Proportional valve 0-130 mA (pure DC constant current source)
Rated power 25W per person (20°C)
Insulation level Class B (130°C)
External leakage≤ 35 ml/h (intake pressure 15 kPa)
Internal leakage≤ 35 mLh (intake pressure 5 KPa)
Setting directionThe air inlet is vertically downward, with a inclination angle of less than 5°
Connection terminalssolenoid valve AMP 187, proportional valve AMP 250+AMP 187
DescriptionThe voltage of the solenoid valve can be selected as 15V, 24V, 110V, or 220V

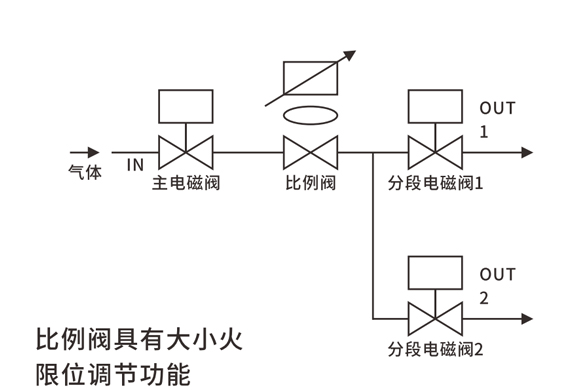

Product Structure(Wiring diagram)

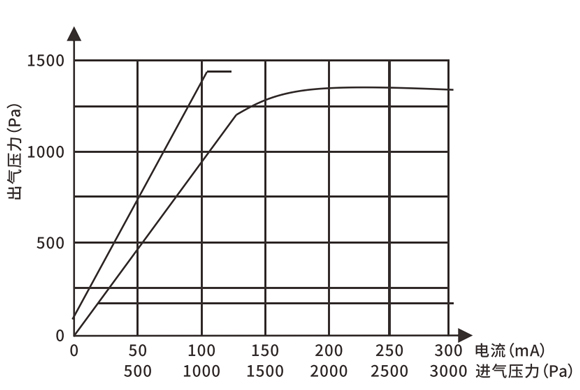

Characteristic Curve
Physical Dimension
