TPV2D1219
Applicable gasesliquefied petroleum gas, natural gas, artificial gas
Service pressure5KPa
Environmental temperature-20~+80 °C (without icing)
Drive power supplysolenoid valve DC12V; Proportional valve 0~140mA (superimposed AC constant current source)
Rated powerbelow 25W (at 20 °C)
Insulation levelClass B (130 °C)
External leakage≤ 35mL/hi, intake pressure 15KPa)
Internal leakage≤ 35mL/hi, intake pressure 5KPa)
Setting directionThe air inlet is placed horizontally, with a inclination angle of within 5 °
Connection terminalsolenoid valve Molex51216-0400. Proportional valve AMP25522-PT
DescriptionThe voltage of the solenoid valve can be selected as 12V, 15V, or 24V

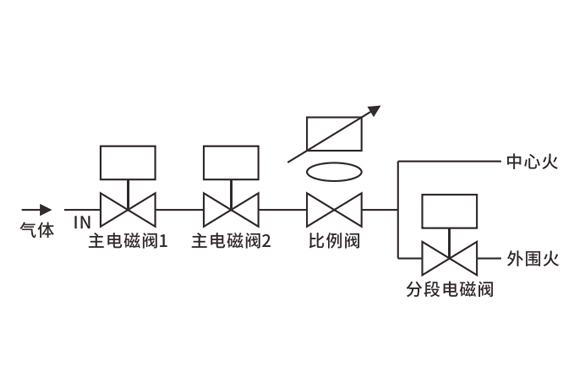

Product Structure(Wiring diagram)

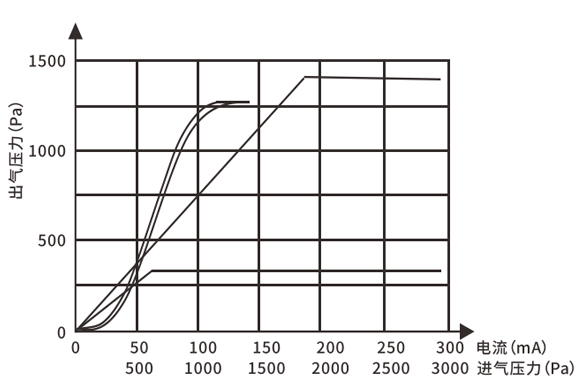

Characteristic Curve
Physical Dimension
