TPV2D2201N
Applicable gasesliquefied petroleum gas, natural gas, artificial gas
Service pressure6.5KPa
Environmental temperature-20~+60C (without icing)
Drive power supplysolenoid valve DC200V (AC220 full wave rectification); Proportional valve 0~130mA (pure DC constant current source)
Rated power below 25W (at 20°C)
Insulation level Class B (130 °C
External leakage≤35mL/h (intake pressure 15KPa)
Internal leakage≤35mL/h (intake pressure 5KPa)
Setting directionThe air inlet is vertically downward, with a inclination angle of within 5 °
Connection terminalsolenoid valve AMP187 proportional valve AMP250+AMP187
DescriptionThe voltage of the solenoid valve can be selected as 15V, 24V, 110V, or 220V

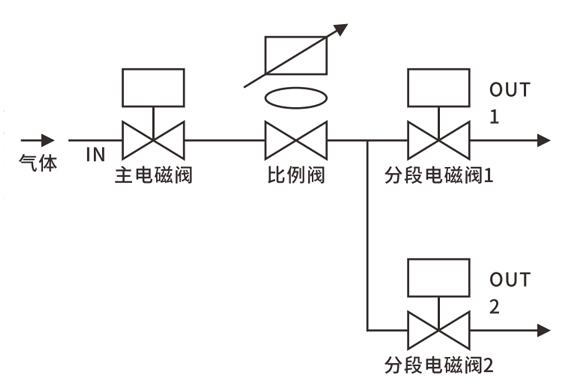

Product Structure(Wiring diagram)

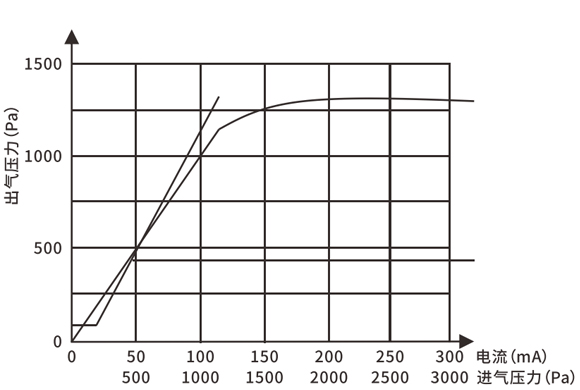

Characteristic Curve

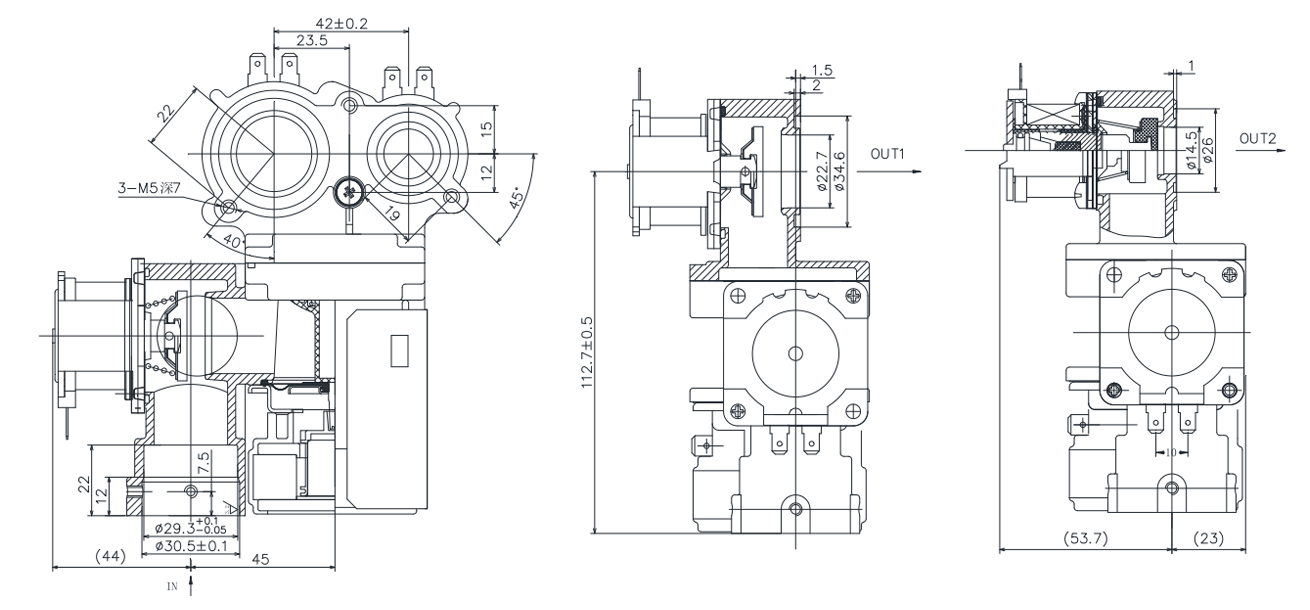

Physical Dimension
